How I diagnosed en elusive ‘is not a valid Win32 application’ exception

We were using BizTalk Server 2010 and the MQ Client (MQSC) adapter from Host Integration Server 2010 (HIS 2010). We had been getting an exception on and off on servers without really knowing why it appeared on some servers and not on others. We even opened a case with Microsoft, but they are only human like the rest of us and can’t magically diagnose and solve errors remotely based on vague input, so that really didn’t lead anywhere other then things like “Make sure you are running the adapter in a 64-bit process”. The exception message was this:

The adapter "MQSC" raised an error message.
Details "Could not load file or assembly 'Microsoft.BizTalk.Adapter.Mqsc.ImqWrapper.dll'
or one of its dependencies. is not a valid Win32 application. (Exception from HRESULT: 0x800700C1)".

It’s enough to say that we investigated the error in a number of ways, including making sure that the specific dll mentioned was present. But as we all know the “or one of its dependencies” can hide any number of referenced dlls. So we made sure that the machines that worked and the ones that didn’t had the same assemblies available, which they did. Still no luck in narrowing it down. Luckily the exception happened right when you enabled a receive location so it was easy to identify and therefore to reproduce and troubleshoot.

I resorted to using Process Monitor (not to be confused with Process Explorer, although also a great tool not the best in this scenario). I started the tool, found the PID for the process running my MQSC adapter process (see this post for details on identifying the BTSNTSvc process that belong to a certain host and get the PID) and set a filter for just that PID to reduce the noise. Finally I enabled the receive location. That gave me this:

clip_image001

As you can see in the image BizTalk Server is probing for an assembly in different locations, and it’s not the Microsoft.BizTalk.Adapter.Mqsc.ImqWrapper.dll. It’s the imqb23vn.dll from the WebSphere MQ installation. It’s trying to locate the assembly and finding it in the WebSphere MQBin64 folder. However it gets an Access Denied when trying to access it, so it then continues on to the WebSphere MQBin folder, where it locates the 32-bit version, which is does have access to, and so it loads it.

The exception message then is not saying that a 32-bit process is trying to use an assembly meant for a 64-bit process, but the opposite; that the assembly we are trying to load cannot be loaded as the application that is loading it (in this case BTSNTSvc64.exe) is a 64-bit process, aka not a valid win32 application.

Setting the correct permission on the file and hooking onto the process once again to see what it is doing verified the theory. The image below shows how it loads the correct 64-bit version of the imqb23vn.dll and the continues on to the next assembly which has the same issue and causes the exception once again. The exact same exception, but this time caused by another underlying referenced assembly:

clip_image001[4]

Setting appropriate access permissions on the entire folder made the process complete without exceptions and the adapter able to successfully connect to the MQ queue and pick up the messages on it and deliver them to the messagebox. Why the folders ended up getting different permissions in this way is still a mystery…

HTH,

/Johan

64-bit, BizTalk Server 2010

BizTalk Server 2010 Standard DOES support 64-bit

A while back I posted about BizTalk Server 2009 Standard not supporting 64-bit hosts. It was an odd thing in these times of 64-bit computing. The product group came very close to giving an outright promise to remove the limitation in the 2010 version.

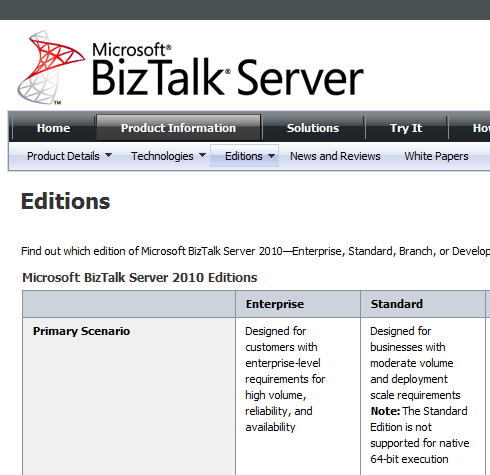

For that reason I was very surprised to still find all references of the documentation suggesting that the limitation was still there. Like the sample below.


It might still be due to me misunderstanding exactly what “native 64-bit processing” really means. That’s part of the reason for this article..

When I asked (Paolo Salvatori) though I was told the documentation might be (and was probably) wrong. I took that on faith, but still, what better then a test now once the Standard edition has been release for download.

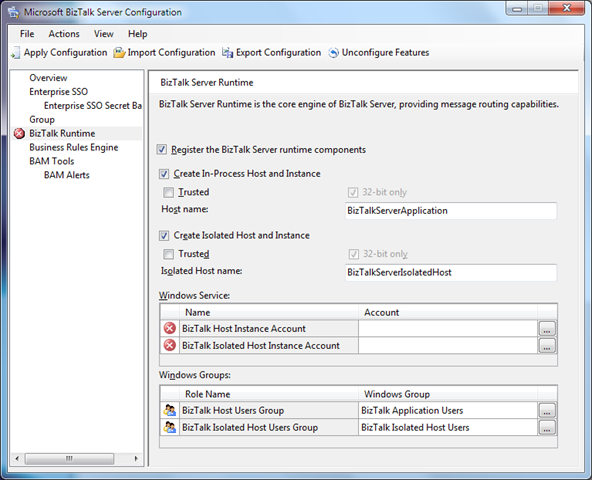

It started of bad with BizTalk Server Configuration. At this point the “32-bit only” checkboxes were grayed out and selected. Nor promising, but maybe it always looks that way.


However, when I got into the BizTalk Server Administration console I could create a 64-bit host.


And I could create and start a host instance for that host.


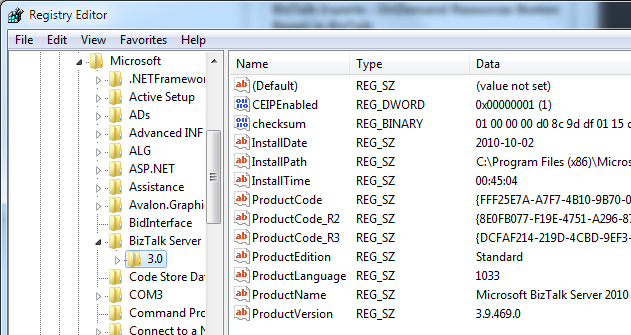

And yes, I am using a Standard Edition.


Update after Comment from Erik:

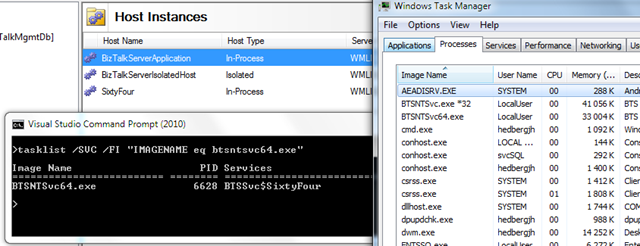

The process can, as per the picture above, be seen as running as the BTSNTSvc64.exe process.

64-bit, BizTalk Server 2009

BizTalk Server 2009 Standard and 64-bit processing

I was kind of suprised when I saw this blog post. Saying that 64-bit processing wasn’t allowed with Standard Edition of BizTalk. Since I was at PDC at the time I asked the people there who were (without me putting words in their mouths) equally suprised. At the time they couldn’t see either a licensing or technical reason as to why that would be so. And to add to that it was strange that Branch was allowed while Standard was not.

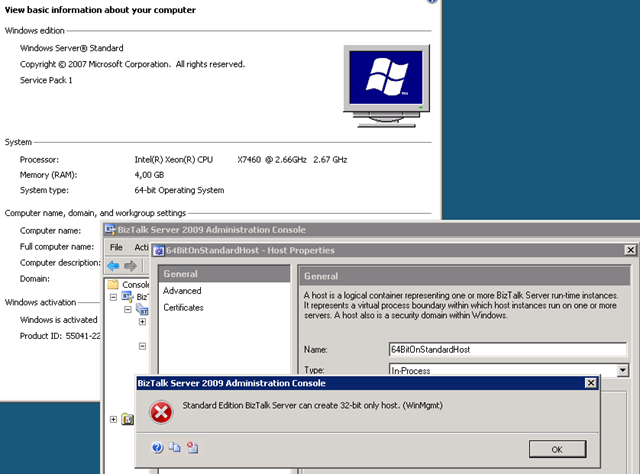

I didn’t have access to machines (or time) to test right then, but after getting back I tested and true enough you are not allowed to create a 64-bit host. The UI stops you. As you can see, this doesn’t stop BizTalk Server Standard from being installed on a 64-bit machine – it just doesn’t get the benefits of 64-bit processing.




I also found an “official” explanation to this here, which I’ve pasted below:


“We consider 64-bit support an Enterprise Edition level feature that a customer would only select if they require faster messaging/orchestration processing or the larger addressable virtual memory of 64-bit mode for large BizTalk message mapping or other memory intensive operations. Because the Standard Edition is designed for small-to-medium environments, it is licensed to only run on a single BizTalk server with a maximum of two CPUs, maximum of five “BizTalk Applications”, and a single message box. 64-bit support for the Standard Edition seemed counter-intuitive from a technical and licensing perspective. If the deployment scenario requires 64-bit hardware then it certainly requires BizTalk Enterprise as well. Standard edition is for single box only installations. Enterprise is also required for multi box installs and for clustering.”


Judging from the fact that 64-bit is now very much mainstream, especially on servers, I would expect to see this change in the upcoming releases of BizTalk Server.

64-bit, Administration, BizTalk Server 2009, Installation

BizTalk Server 2009 Installation Errors

I just thought I’d mention these install errors since I’ve gotten them now on several occasion when installing BizTalk Server 2009 Enterprise 64-bit Single Sign On Master Secret Server on Windows Server 2008 and SQL Server 2008 (although I doubt the last one has any role in these errors).

This page describes the procedure of Installing and Clustering the Enterprise SSO Master Secret Server, although it mentions nothing about these specific peculiarities.

Error1

Log

[10:03:05 Error] Setup runtime files for AMD64 platform: Fatal error during installation.
[10:03:05 Info] Marking Stage: Install/Installing components as Completed in TaskInfo XML
[10:03:05 Info] ReadTaskInfoXML: Attempting to load TaskInfo xml from string
[10:03:15 Info] Showing MessageBox with text: The following platform components failed to install and will need to be manually installed before setup can proceed: Setup runtime files for AMD64 platform: Fatal error during installation. Check the log for details. Return Code: 1

MSI (s) (8C:FC) [10:03:04:688]: Product: Microsoft BizTalk Server Setup Bootstrap Files (x64) — Error 1310. Error writing to file: atl90.dll. System error 0. Verify that you have access to that directory.
Error 1310. Error writing to file: atl90.dll. System error 0. Verify that you have access to that directory.
Action ended 10:03:04: InstallFinalize. Return value 3.
Action ended 10:03:05: INSTALL. Return value 3.
MSI (s) (8C:FC) [10:03:05:867]: Product: Microsoft BizTalk Server Setup Bootstrap Files (x64) — Installation failed.
MSI (s) (8C:FC) [10:03:05:868]: Windows Installer installed the product. Product Name: Microsoft BizTalk Server Setup Bootstrap Files (x64). Product Version: 3.8.368.0. Product Language: 1033. Installation success or error status: 1603.

Resolution

I have received this error if I connected to the server using Remote Desktop/Microsoft Terminal Service Client without using the /admin flag (former /console flag). Read more here.

Error2

Log

[10:34:48 Info] Showing MessageBox with text: The following platform components failed to install and will need to be manually installed before setup can proceed: Enterprise Single Sign-On Server: Unspecified error Check the log for details. Return Code: 1

[10:34:35 Info] Error 1928.Error registering COM+ application. Please ensure that DTC is enabled. Contact your support personnel for more information.
[10:34:35 Info] Showing MessageBox with text: Error 1928.Error registering COM+ application. Please ensure that DTC is enabled. Contact your support personnel for more information. Return Code: 0
[10:34:35 Info] Action 10:34:35: Rollback. Rolling back action:
[10:34:39 Info] Detailed Log information for product D:InstallBiztalk 2009PlatformSSO64SSO64.msi is available at <a href="C:UsersxxxAppDataLocalSetup(072909 103411).log">DetailedLog</a>
[10:34:39 Info] MSI installation returned 1603 – Fatal error during installation.
[10:34:39 Error] Error 1928 occurred during MSI installation.
[10:34:39 Error] Action 10:34:30: InstallComplus.8E665C9D_5561_45FC_AAA0_3878B87F3B86. Installing COM+ components
[10:34:39 Error] Error 1928.Error registering COM+ application. Please ensure that DTC is enabled. Contact your support personnel for more information.
[10:34:39 Error] c:depotsetupv2privatecommonsetupwizardexesetup.cpp(1670): FAILED hr = 80004005

Resolution

This error has occurred in clustered environments when the clustered instance of MSDTC was not active on the node on which the installation was taking place. Failover the MSDTC to the current node that installation is to be run on and try again.

64-bit, BizTalk, Configuration, Links, Readings

Linklist: BizTalk 64-bit

I’ve read a few links lately that has to do with issues or gotchas around BizTalk and 64-bit computing. I decided to publish the list to make it more easily available for myself, and others.



I’ll settle for these links for now, but I’ll probably keep adding as I find more 64-bit links relating to BizTalk that interests me.
